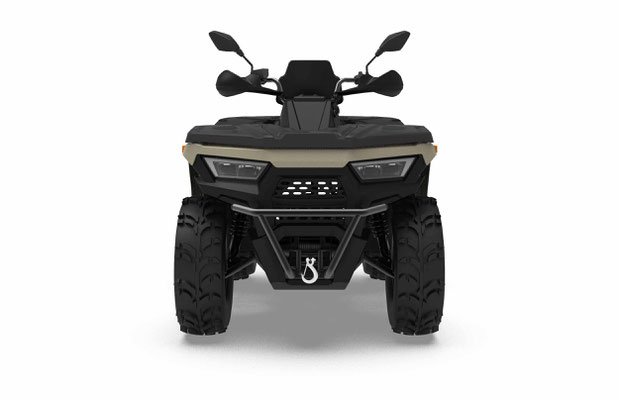

Monster F320 ATV
Model F320
Size: L×W×H2120×1140×1270mm
Wheelbase 1215mm
Ground clearance 183mm
Dry weight 295kg
Fuel Tank Capacity 14L
Max speed>60 km/h
Drive System Type 2WD/4WD
Specification of tire
Front: AT24×8-12
Rear: AT24×11x10
Brake system model
Front: Hydraulic Disc
Rear: Hydraulic Disc
Suspension type
Front: McPherson independent suspension
Rear: Swing arm
Engine model LH173MN
Engine type Single cylinder, 4 stroke, water cooled
Engine displacement 275cc
Bore and Stroke 72.5×66.8 mm
Max power 16/6500~7000 (kw/r/min)
Horse power 21.4 hp
Max torque 23/5500 (Nm/r/min)
Compression Ratio 9.5:1
Fuel system EFI
Start type Electric starting
Transmission H-L-N-R
