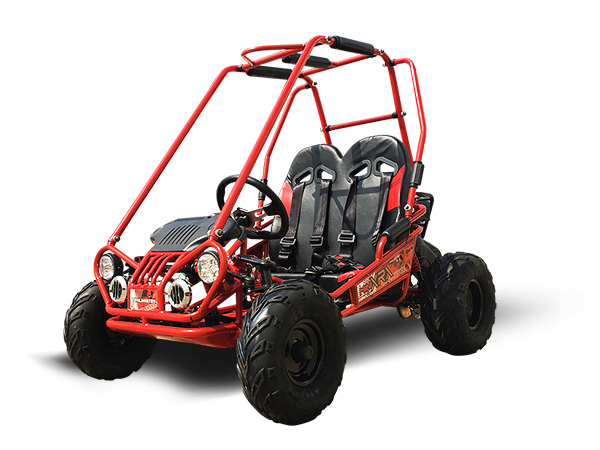

PRODUCT INFORMATION
Engine Information
EPA certified and CARB approved
Engine type: 4-stroke, single cylinder, air cooled
Displacement: 163cc
Max HP: 5.5hp/3600rpm
Max torque: 8lb ft/3600rpm
Bore x stroke: 2.6 x 1.8 inches
Climbing ability: 12 degrees
Engine oil: SAE 15W-40
Ignition: C.D.I
Starting system: Electric Start with Pull Start Backup
Battery: 12V 9Ah
Carburetor brand: JF (RX)
General Information
Clutch: Automatic with Reverse
Driveline/Driving wheel: Chain/Dual wheel drive
Suspension, F/R: Dual A-arm / Double Oil Damped Shock
Brakes: Disc
Tires, F / R: 145X70-6 / 16 X8-7
Fuel capacity: 1.2 gal
Weight, G.W. / N.W.: 280/232lbs
Max load: 300lbs
Dimension Information
Wheelbase: 42.6 inches
OA L x W x H: 58.7x38.2x48.8 inches
Height to seat: 13.6 inches
Min ground clearance: 4.02 inches
Pedal to seat back: 30” to 35”; Pedal can also adjusted to 3” or 6” shorter.
Features: Live Axle, Two-wheel Drive, Electric Start w/Pull Start Back Up, LED Headlight, Remote Start/Kill, Adjustable Sports Seat, Adjustable Pedal, Five Point Safety Seatbelt, Speed Governor, Horn, Age group: 4 to 12 yrs.
