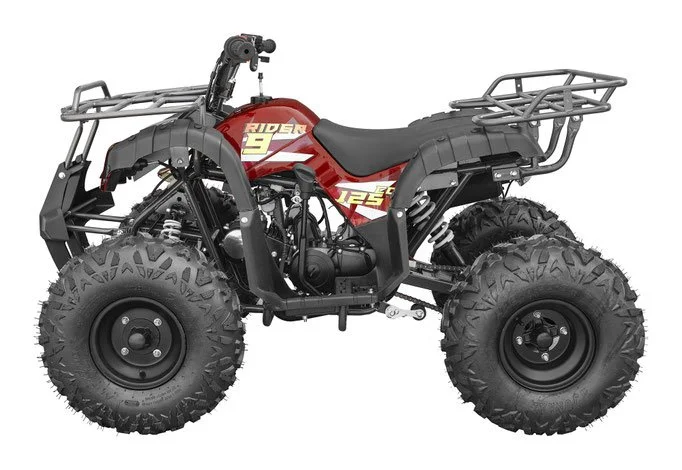

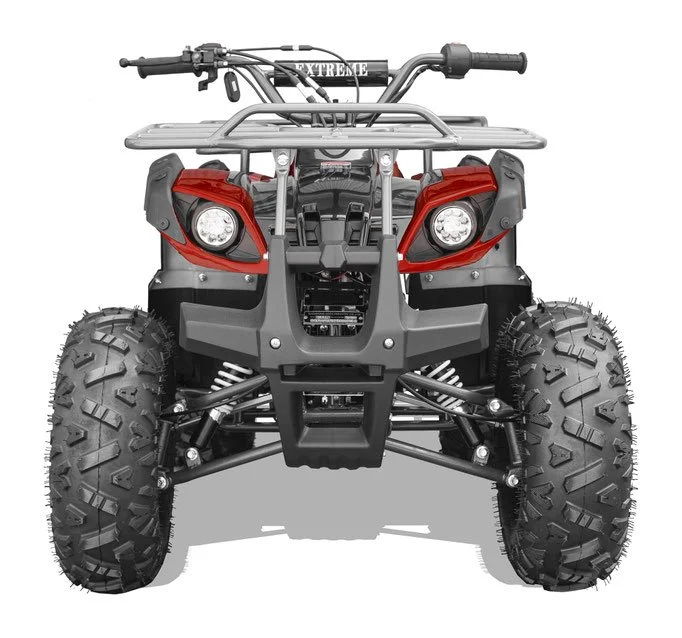

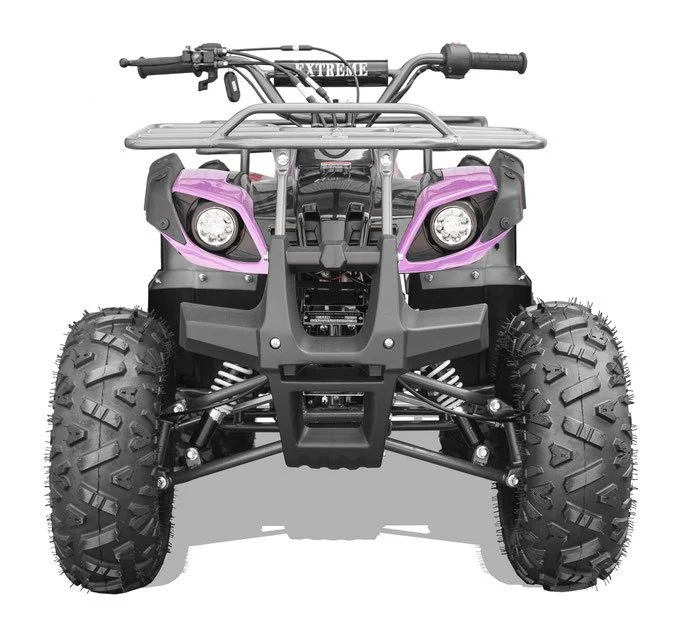

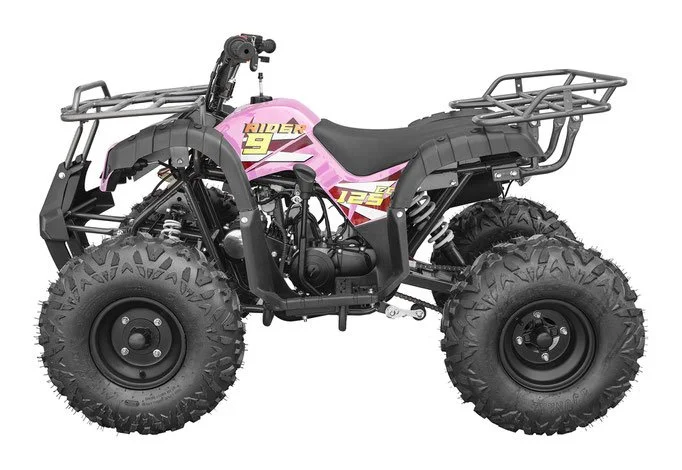

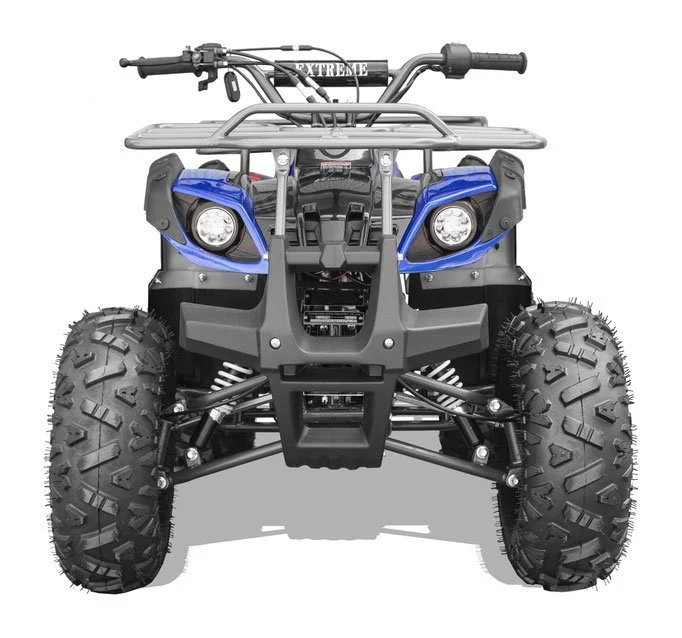

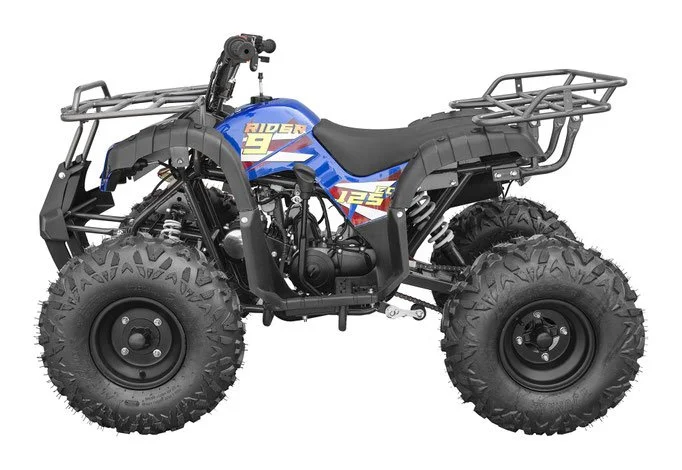

Rider 9 ATV! Automatic with Reverse. Hand shift. Metal racks. Throttle governor. Remote stop. Great for kids!!
Engine Type: Single cylinder, 4 stroke, air-cooled
Displacement: 125cc(119.6）
Compression Ratio: 9.6:1
MAX POWER OUT: 5.5kW/8500r/min (kW/r/min)
Max Torque: 6.9N.m/6500r/min (N.m/r/min)
Gear shift mode: One forward and one reverse with hand gear shift
Carburetor: PZ20
Ignition: AC-CDI
Starting System: Electric
Transmission: CHAIN
Suspension / Front: Traverse Double-arm
Suspension / Rear: Non-independent suspension
Brakes / Front: Drum brake
Brakes / Rear: Disc brake
Tires and Rim/ Front: 19X7-8 20F
Tires and Rim/ Rear: 18X9.5-8 25F
Dimension L x W x H62" x 38" x 37"
Seat Height: 27.5"
Wheelbase: 37.7"
Front Wheel tracy: 30.9"
Rear Wheel Tracy: 26.3"
Fuel Capacity: 2.2L
Net Weight: 236LBS
Ground distance: 5.5"
Max payload: 143LBS
